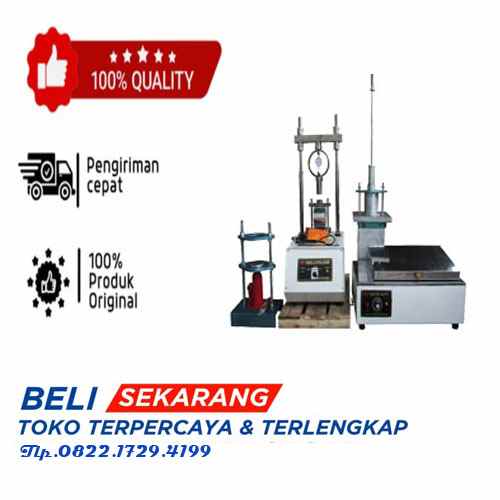

Marshal Test Set 6inch ASTM D-1559 / Aashto T-245

Consist of :
For determining the resistance to plastic flow of cylinder specimen of bituminous paving mixture loaded on the lateral surface by means of the marshall apparatus.

• RI-321 Compression Machine Steel frame, electric, 220 V-AC, 1/2 HP, 1 Phase, speed:2 per minute 1 Set
•  RI-322A Compaction Mold Machined steel, plated, 6 dia., 3 height, with collar and base plate 1 Set
•  RI-323A Stability Mold Cast alumunium, split type 6 i.d., 6 wide 1 Set
•  RI-324 Compaction Hammer Machined steel, galvanized, 10 lbs, hammer weight, 18 drop height 1 Set
•  RI-326 Compaction Pedestal Wooden base with steel platen 1 Pc
•  RI-327 Compaction Mold Holder Machined steel, quick clamping system 1 Set
•  RI-328 Extruder Steel frame, hydraulic system 1 Set
•  RI-329 Flow Meter Cast alumunium, clamping bolt, with dial indicator 30 x 0.01 mm 1 Set
•  RG-200 Water Bath Stainless steel, water heater 220 V-AC, thermostat 30-85oC 1 Set
•  RG-101.6 Proving Ring 6000 lbs capacity 1 Set
