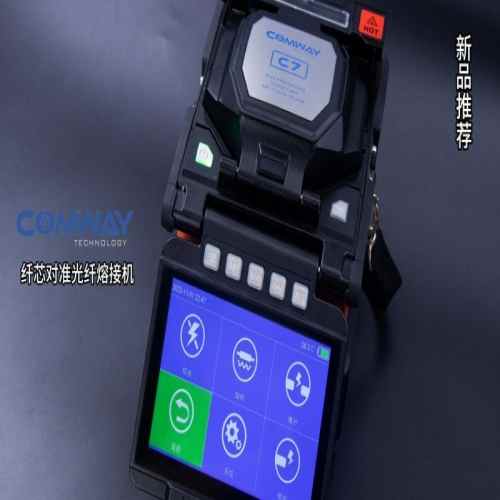

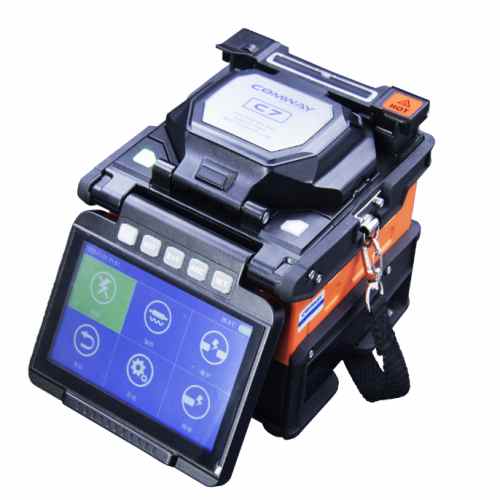

CV. Mitra Laser - Jual Fusion Splicer Comway C7

Jalan Inpres 18, Komplek Sabar Ganda No. 11, Larangan, Tangerang
  • Rp 33.500.000
Specifications
Size & Weight : D156×W135×H149(mm), 1.86kg (2.41kg with battery)
Fiber alignment : Core alignment
Fiber type : SM(ITU-T G.652), EB(ITU-T G.654), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657)
Splice mode : Single fiber
Fiber diameter : Cladding diameter 80~150μm, coating diameter 100~3000μm
Cleave length : 250μm cladding diameter 5~16mm, over 250μm cladding diameter 16mm
Splicing programs : Max. 200
Splicing time : 6 sec. [SM Fast] program, 12 sec. [SM G652] program
Heating programs : Max. 30
Heating time : Adjustable, 8 sec. typical
Splice protector : 10~60mm
Splice image capture : Max. 800
Splice data storage : Max. 20000
Splice loss : SM:0.01dB, MM:0.01dB, DS:0.02dB, NZ/NZDS:0.02dB, BI:0.02dB
Return loss : >>60dB
Loss estimation : Provided
Operation condition : Altitude 0~5000m, Humidity 0~95%,Temperature -10~+50°C, Wind velocity up to 15m/s
Storage condition : Humidity 0~95%, Temperature -40~+80°C (Battery -20~+40°C)
Tension : 1.96~2.25N
Screen : 5 inch touch screen
Fiber magnification : 300x for X or Y single axis view, 750x for both X&Y dual axis view(zoom up)
Port : High speed USB
Electrode life : 5000 ARC discharges
Power supply : AC100-240V, 50/60Hz
Battery parameters : 5600mAh High capacity battery, more than 350 times splicing and heating

Untuk Pemesanan dan Info Harga Terbaik, Hubungi :
Roni Zayini
Phone : 081274087466

OFFICE
CV.Mitra Laser
Jln. Inpres 18, Komplek Sabar Ganda No.11 Kota Tangerang Selatan
