Jual Proceq Resipod Resistivity meter 50mm Baru

The Proceq Resipod Resistivity Meter is a fully integrated 4-point Wenner probe, designed to measure the electrical resistivity of concrete in a completely non-destructive test.

Operating on the principle of the Wenner probe, the Resipod is designed to measure the electrical resistivity of concrete or rock. A current is applied to the two outer probes, and the potential difference is measured between the two inner probes. The current is carried by ions in the pore liquid. The calculated resistivity depends on the spacing of the probes.

It is extremely fast and stable and packaged in a robust, waterproof housing designed to operate in a demanding site environment. The Resipod is the successor of the classic CNS Farnell resistivity meter.

Surface resistivity measurement provides extremely useful information about the state of a concrete structure. Not only has it been proven to be directly linked to the likelihood of corrosion and the corrosion rate, recent studies have shown that there is a direct correlation between resistivity and chloride diffusion rate and even to determination of early compressive strength. This makes it one of the most versatile NDT methods for concrete.

Waterproof and designed to float

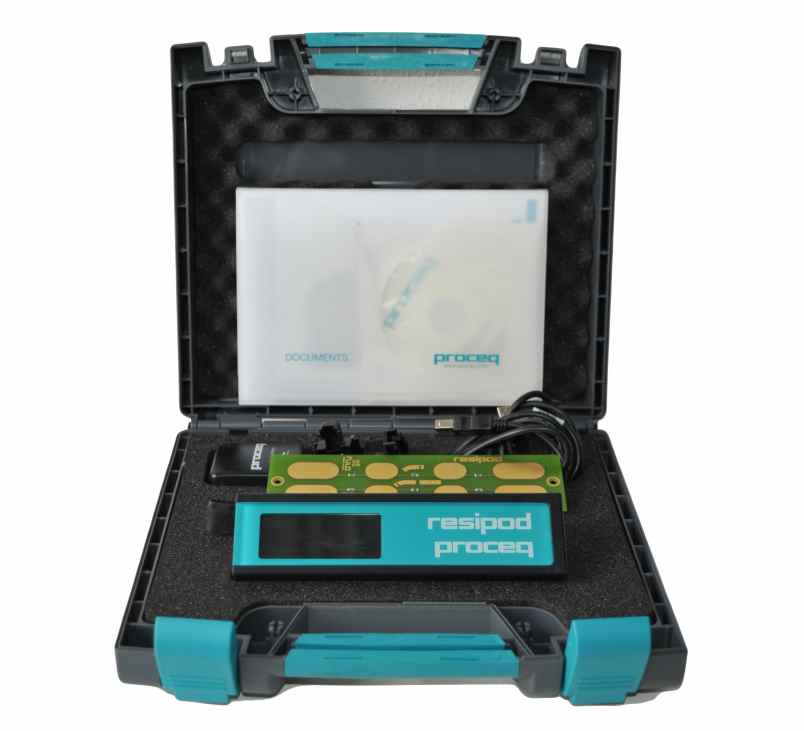

Supplied with a USB connection and dedicated Resipod Link PC software, rugged carrying case, test block and documentation
DOT tested and field proven through highway department studies

Specifications

Range: 0.1 ca. 1000 k cm
Resolution: 200 A 0.2 k cm or 1%
Resolution: 50 A 0.3 k cm or 2%
Resolution: 50 A 2 k cm or 5%
Frequency: 40 Hz
Memory: 500 measured values
Power: 50 hours autonomy
Charger: USB type B, (5V, 100mA)

Display 3.5-digit LCD

Frequency 40Hz

Product Dimensions 7.1 x 2.1 x 2.7in (197 x 53 x 69.7mm) WxDxH
