Jual Icom Ic V86 Vhf Fm Portable Transceiver

Jalan D. Musyawarah No. 93a, Jurang Mangu Timur, Pondok Aren, Tangerang Selatan
  • Rp 2.250.000

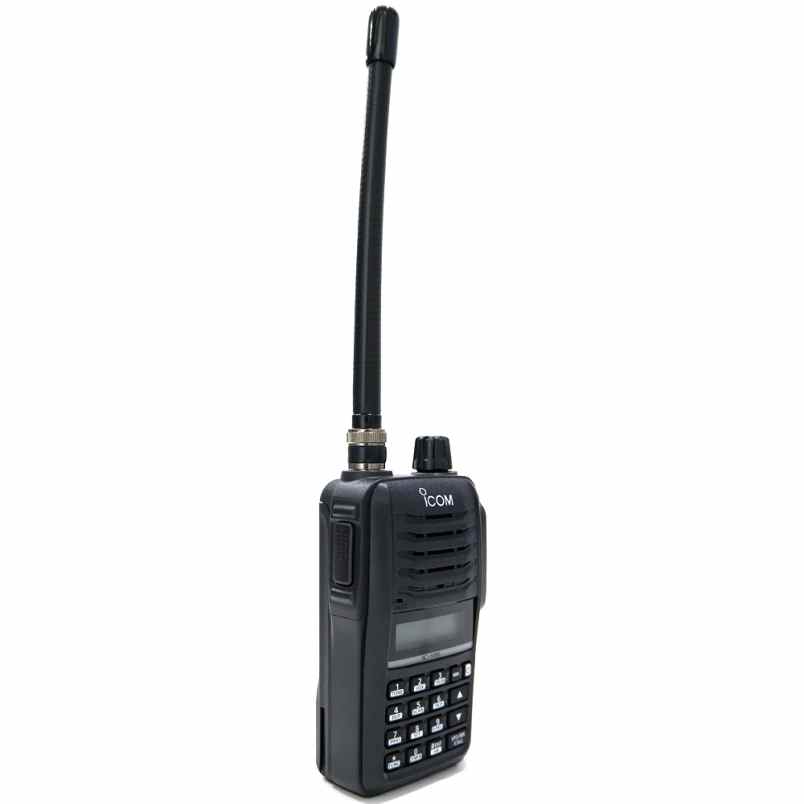

ICOM IC-V86 VHF FM Portable Transceiver
============================================================
Features
  • Selectable volume level, VFO/memory channel selection control
  • Integrated VOX function
  • Built-in CTCSS/DTCS encoder/decoder and tone scan
============================================================
Specifications
General
Frequency coverage (Guaranteed) : TX : 144 148 MHz, RX : 136 174 MHz
Number of channels : 207 channels (200 memory channels, 1 call channel and 6 scan edges)
Type of emissions : F2D, F3E (FM, FM-N)
Power supply requirement : 7.5V DC
Frequency stability : 2.5 ppm ( 20˚C to +60˚C)
Current drain :
  • TX (EX Hi/Hi/Mid/Low) : A typical
  • RX (Max. audio) : 450 mA typ. (INT SP), 200 mA typ. (EXT SP)
Antenna impedance : 50
Operating temperature range : -20 C to 60 C
Dimensions (W H D) (Projections not included) : mm (with BP-298)
Weight (Approximate) : 300 g (with BP-298, FA-B57V)
Transmitter
Output power : * W (EX Hi/Hi/Mid/Low)
Max. frequency deviation : 5.0kHz/ 2.5kHz (Wide/Narrow)
Spurious emissions : Less than 60 dB
Ext. microphone connector : 3-conductor 2.5 (d) mm (1 10") 2.2 k
Receiver
Sensitivity : 124 dBm typical
Squelch sensitivity : 126 dBm typical
Selectivity (Wide / Narrow) : 75 dB typical / 70 dB typ.
Intermodulation : 65 dB typical
Ext. speaker connector : 3-conductor 3.5 (d) mm (1 8")/ 8
Audio output power :
  • Internal SP (w/8 load) : 1500 mW typical
  • External SP (w/8 load) : 550 mW typical

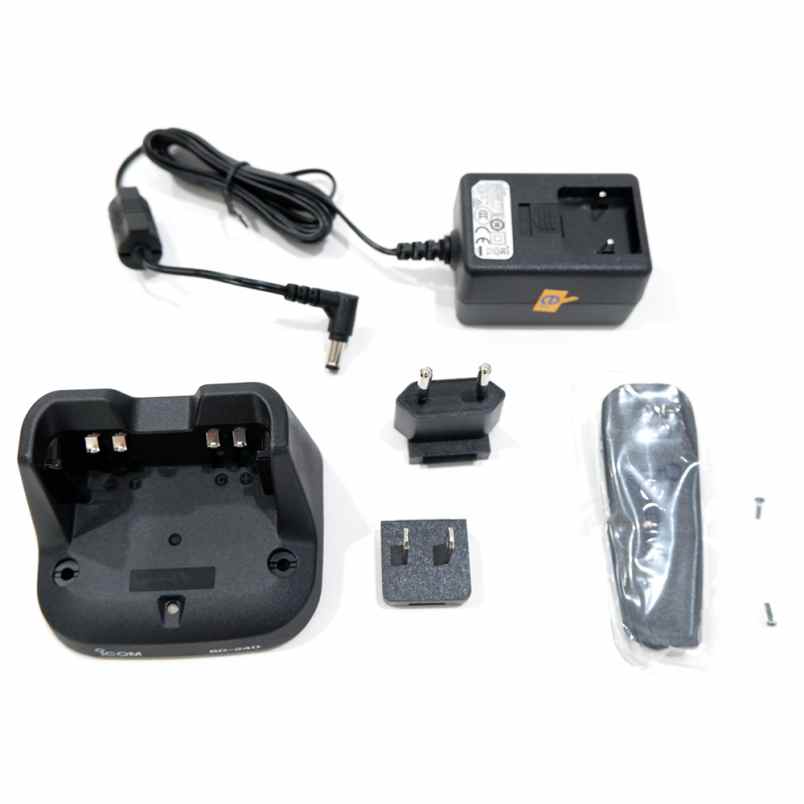

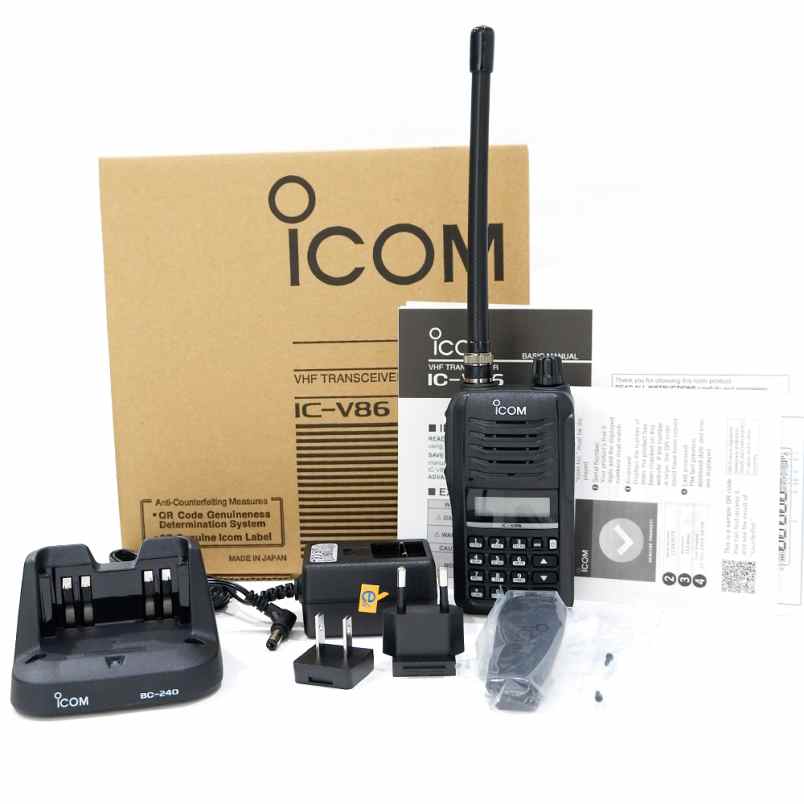

Supplied Accessories
  • Battery pack, BP-298
  • Desktop charger, BC-240
  • AC Adapter, BC-242
  • Belt clip, MB-124
  • Antenna
===========================================================
UNTUK MENGHINDARI PESANAN BARANG ANDA DITOLAK OLEH KAMI, SILAHKAN BERTANYA STOCK BARANG TERLEBIH DAHULU. TERIMA KASIH
