Cv. Mitra Laser - Jual Gw Instek Gsp-818 Spectrum Analyzer

Jln. Inpres 18, Komplek Sabar Ganda No. 11 Tangerang Selatan, Larangan
  • Rp 17.500.000

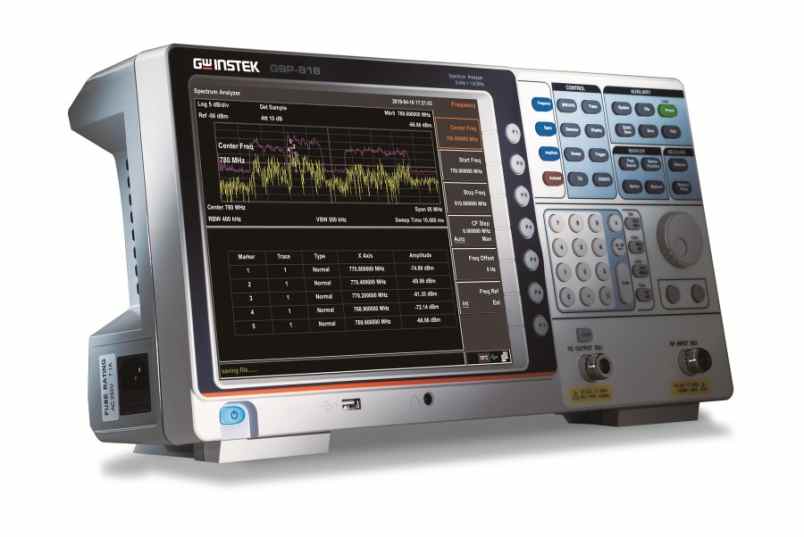

GW Instek GSP-818 Spectrum Analyzer

Features
• Frequency Range: 9kHz to 1.8GHz
• RBW: 10Hz to 3MHz, 10Hz to 500kHz in 1-10 steps
• Sensitivity: -148dBm/Hz Typical @PreAmp On
• Built-in AM/FM Demodulation
• Bandwidth Zoom function
• Measurement Function: ACPR/OCBW/CHPW, NdB Bandwidth, Freq. Counter, Noise Marker, Limit Line
• Built-in 20dB Preamplifier Standard

Specifications
FREQUENCY
*Frequency Span Range : 9 kHz to 1.8 GHz
*Internal Frequency Reference : 10.000000 MHz
*Bandwidth : 10Hz to 500kHz (1-10 steps by sequence), 1MHz, 3MHz (Option) 200 Hz, 9 kHz, 120 kHz, 1 MHz for EMI(-6dB)
AMPLITUDE
*Amplitude and Level : DANL to +10 dBm, 100 kHz to 1 MHz, Preamp Off; DANL to +20 dBm, 1 MHz to1.8 GHz, Preamp Off
*Display Average Noise Level : +30dBm, average continuous power
DEMODULATION
*Audio Demodulation : 100 kHz to 1.8 GHz
*AM Measurement : 10MHz to 1.8GHz
*FM Measurement : 10 MHz to 1.8 GHz
FREQUENCY COUNTER
*Counter Resolution : 1Hz, 10Hz, 100Hz, 1kHz
INPUT AND OUTPUTS
*RF Input : 50Ω Typical, N Type Female
*Tracking Generator Output : 50Ω Typical, N Type Female
*Reference Input : BNC Female, 0 dBm to +10 dBm
*USB : A Plug, USB 2.0 (Host End), B Plug, 2.0 Version
*VGA : 15-pins, D-SUB (female)
GENERAL
*Display : 10.4 inches, TFT LCD, 800*600 (SVGA), 65536 colors
*Internal Memory : 256M Bytes
*Temperature : 0°C to 40°C
*Dimension & Weight : 421(W) × 221 (H) × 115mm(D)/Approx. 5.0 kg(without package)
ACCESSORIES : Power cord Calibration Certificate, CD (including quick start guide, user manual, programming manual, PC software)
===========================================================
UNTUK MENGHINDARI PESANAN BARANG ANDA DITOLAK OLEH KAMI, SILAHKAN BERTANYA STOCK BARANG TERLEBIH DAHULU. TERIMA KASIH

Untuk Info ketersedian barang hubungi :
Roni Zayini
M : 081274087466 / 081388031624

OFFICE
CV.MITRA LASER
Jl.Inpres 18, Komplek Sabar Ganda No.11 Kel.Larangan Selatan, Kec. Larangan, Kota Tangerang 15154
